Controlled Energy Delivery
The handpiece delivers 808nm laser energy through a defined treatment spot.
使用HTML，JS，CSS制作页面模块，让你的网站变得更受欢迎
FDA Registered Professional Medical Aesthetic Platform

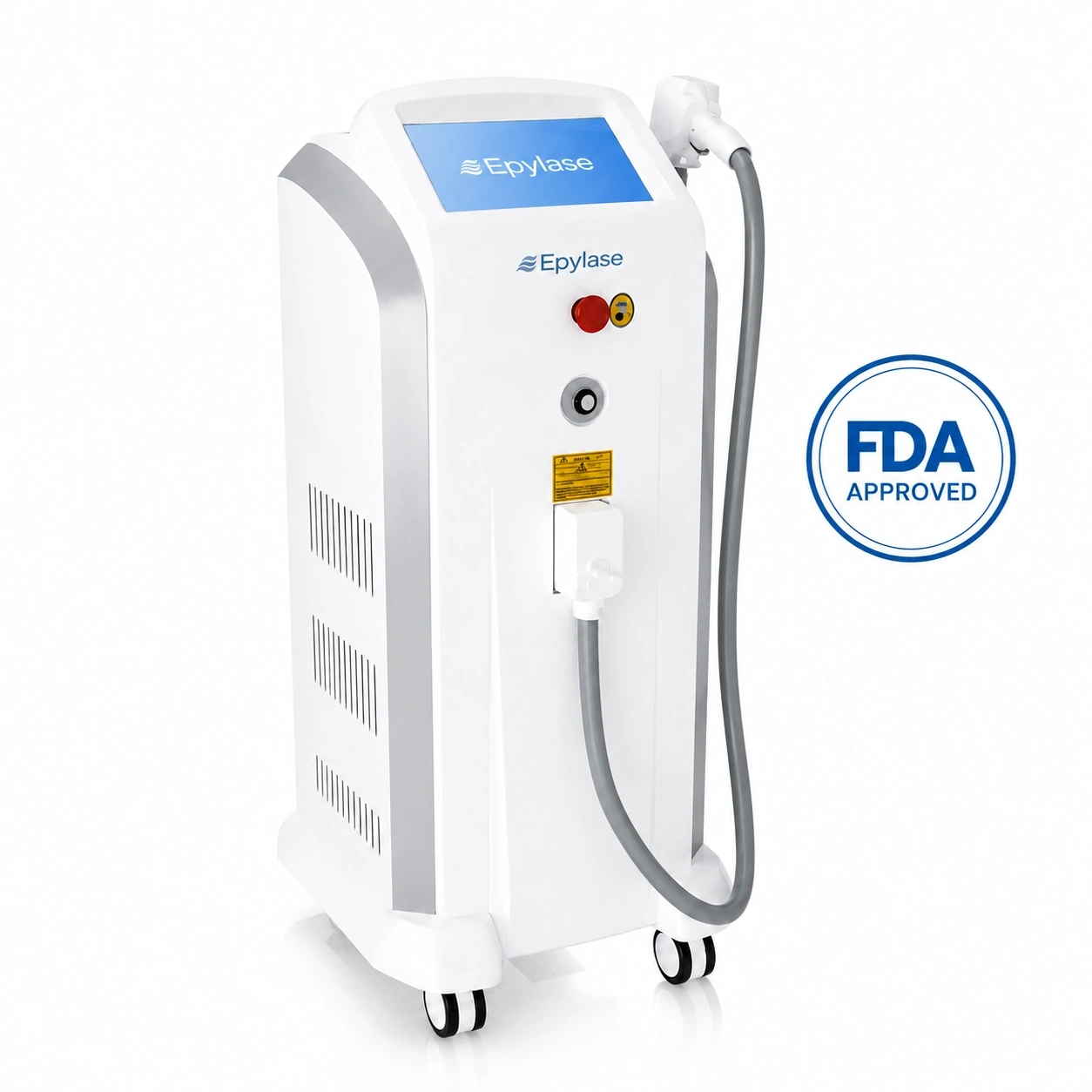

808nm Diode Laser Hair Removal Machine
An FDA registered professional diode laser platform designed for controlled hair reduction protocols, combining an 808nm wavelength, adjustable pulse delivery, high-frequency operation and continuous sapphire contact cooling. Model-specific FDA documentation is available upon request.
808 nm Laser wavelength
Up to 10 Hz Treatment frequency
14 x 12 mm Treatment spot
FDA Registered configuration
Professional clinic configuration
Registered Configuration
Product Presentation
FDA Registered Professional Configuration
The corresponding device model and configuration are supplied with FDA registration or listing documentation. Regulatory status is model-specific; request the exact documentation and verify that it matches the machine stated on the commercial invoice before ordering.
Documentation Available

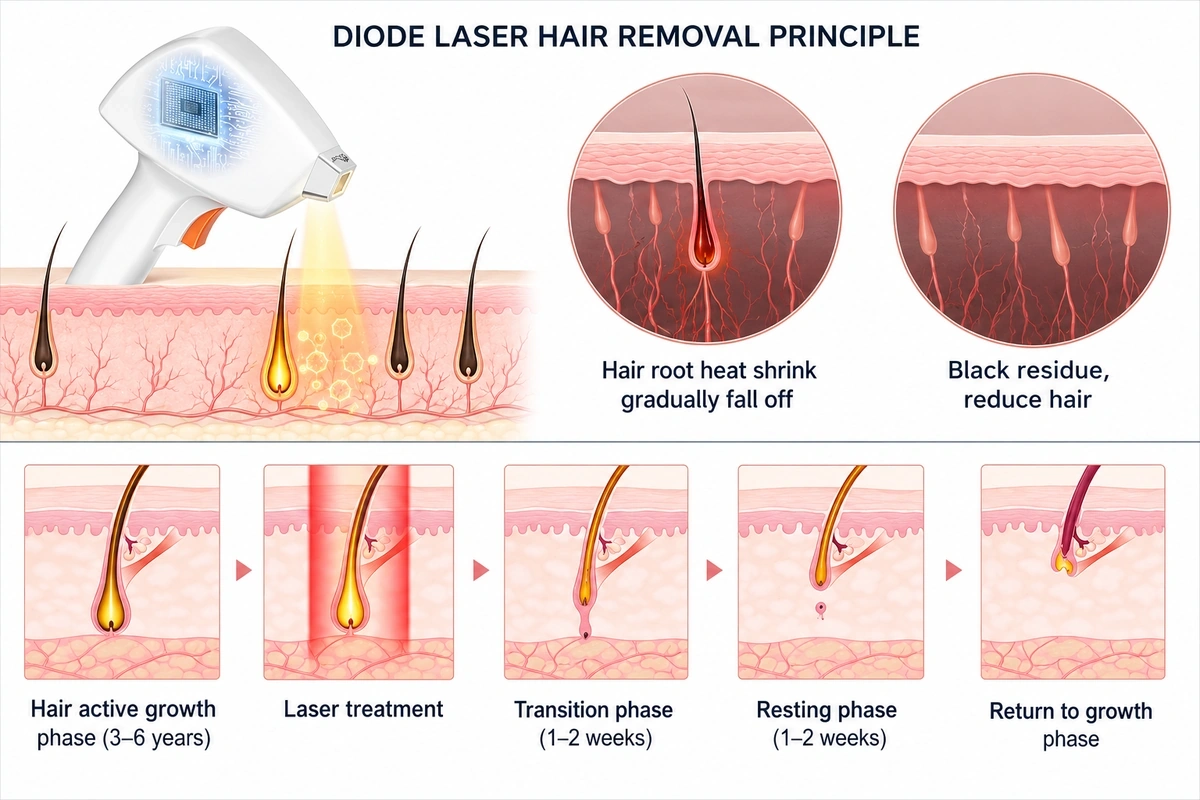

Technology Principle
Selective Photothermolysis for Targeted Hair Reduction
The 808nm diode laser targets melanin within the hair shaft and follicular structure. Absorbed light is converted into heat, helping to thermally affect the follicle. Pulse width, fluence and cooling must be selected according to the patient’s skin type, hair diameter, hair colour and treatment area.
02
Melanin Absorption
Energy is preferentially absorbed by melanin in the hair shaft and follicular target.
03
Thermal Effect with Epidermal Cooling
Sapphire contact cooling helps manage the surface temperature during treatment.
Treatment Applications
Flexible Protocols for Multiple Treatment Areas
The system is designed for professional hair-reduction protocols on commonly treated facial and body areas. Parameter selection should always be performed by a trained operator.
Face & Upper Lip
Precision-oriented protocols for smaller facial treatment zones.
Beard & Neck Line
Controlled treatment options for dense or coarse facial hair patterns.
Underarms
A commonly treated area suited to efficient, repeatable treatment passes.
Arms & Hands
Professional protocols for both broad and localised treatment areas.
Back & Chest
High-frequency operation supports treatment efficiency on larger zones.
Bikini Line
Adjustable energy and pulse settings support personalised protocols.
Legs
A 14 x 12 mm spot and up to 10 Hz frequency support broad-area treatment.
Skin Types I-VI
Protocol options can be configured according to Fitzpatrick skin type and hair characteristics.

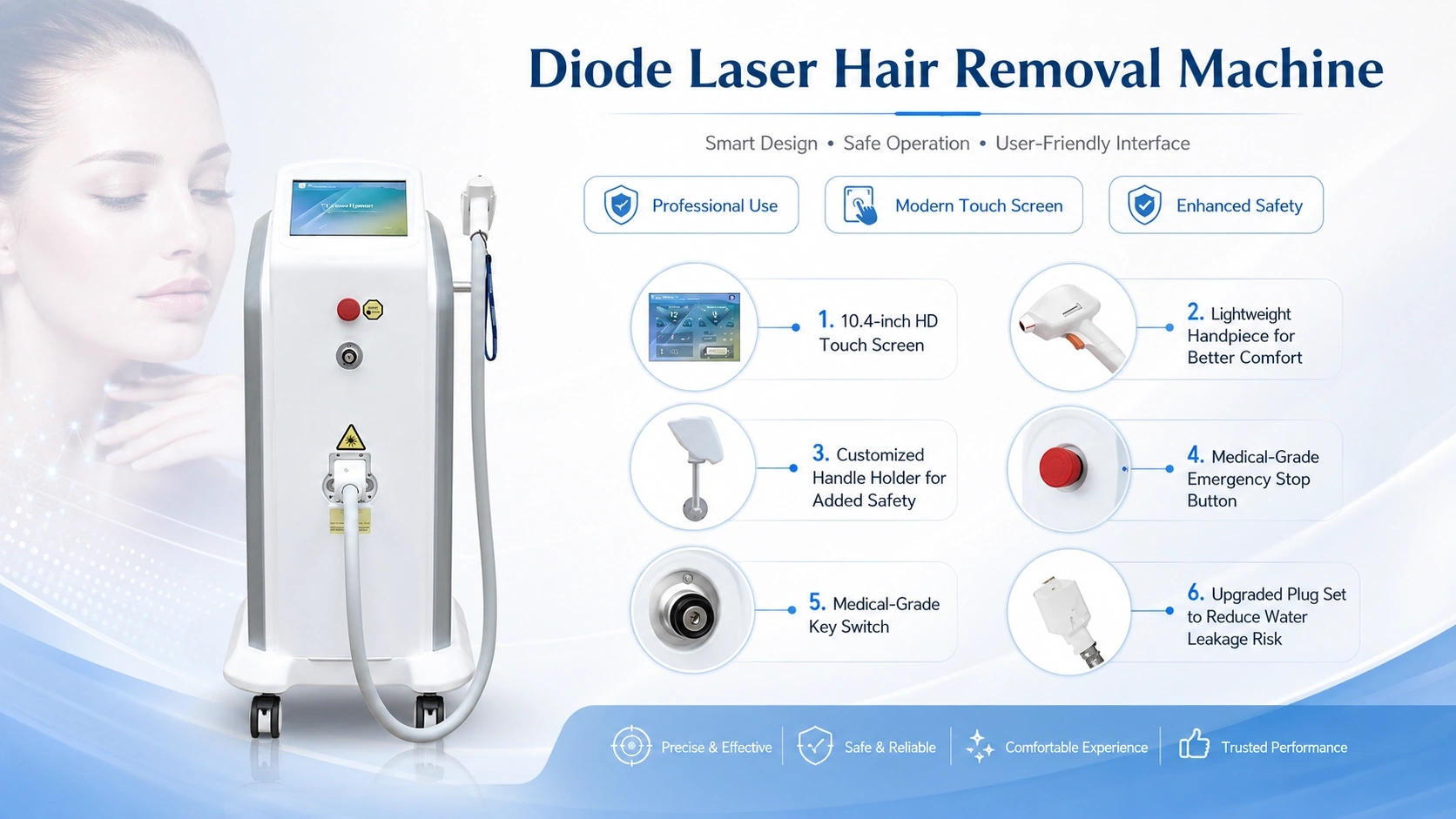

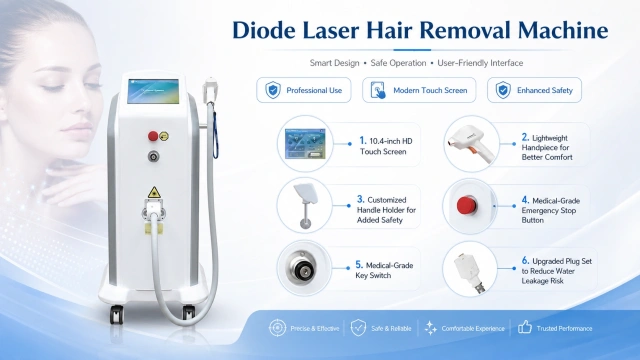

Product Details
Designed for Clinical Workflow and Operator Control
Present the handpiece, interface and internal cooling system with dedicated close-up images. Each image URL below can be replaced directly.

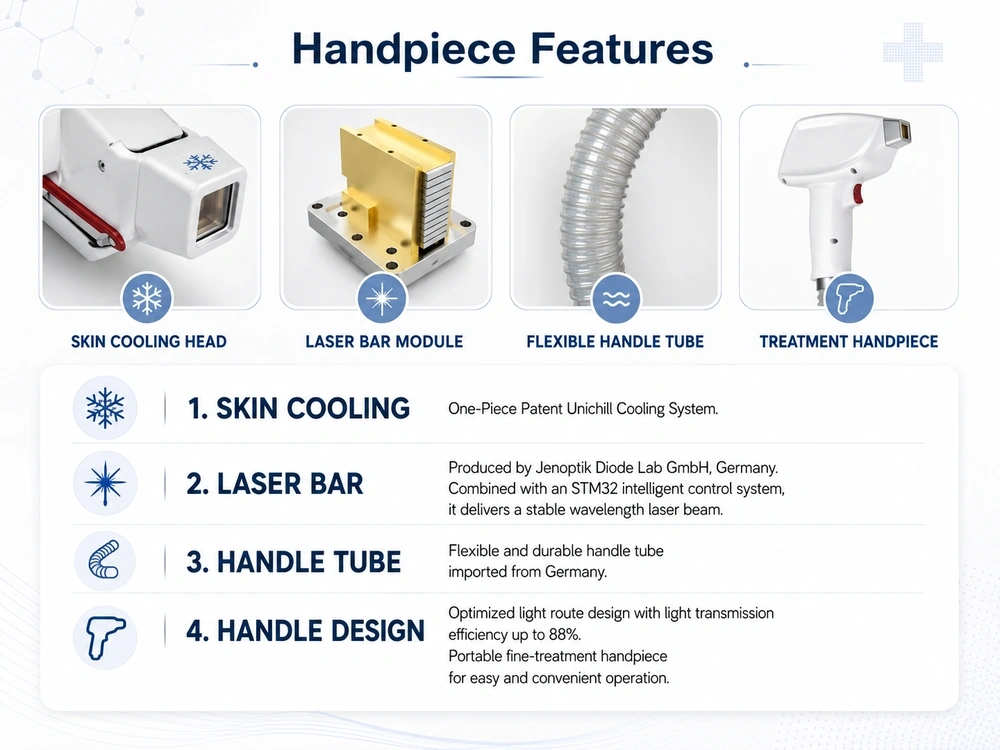

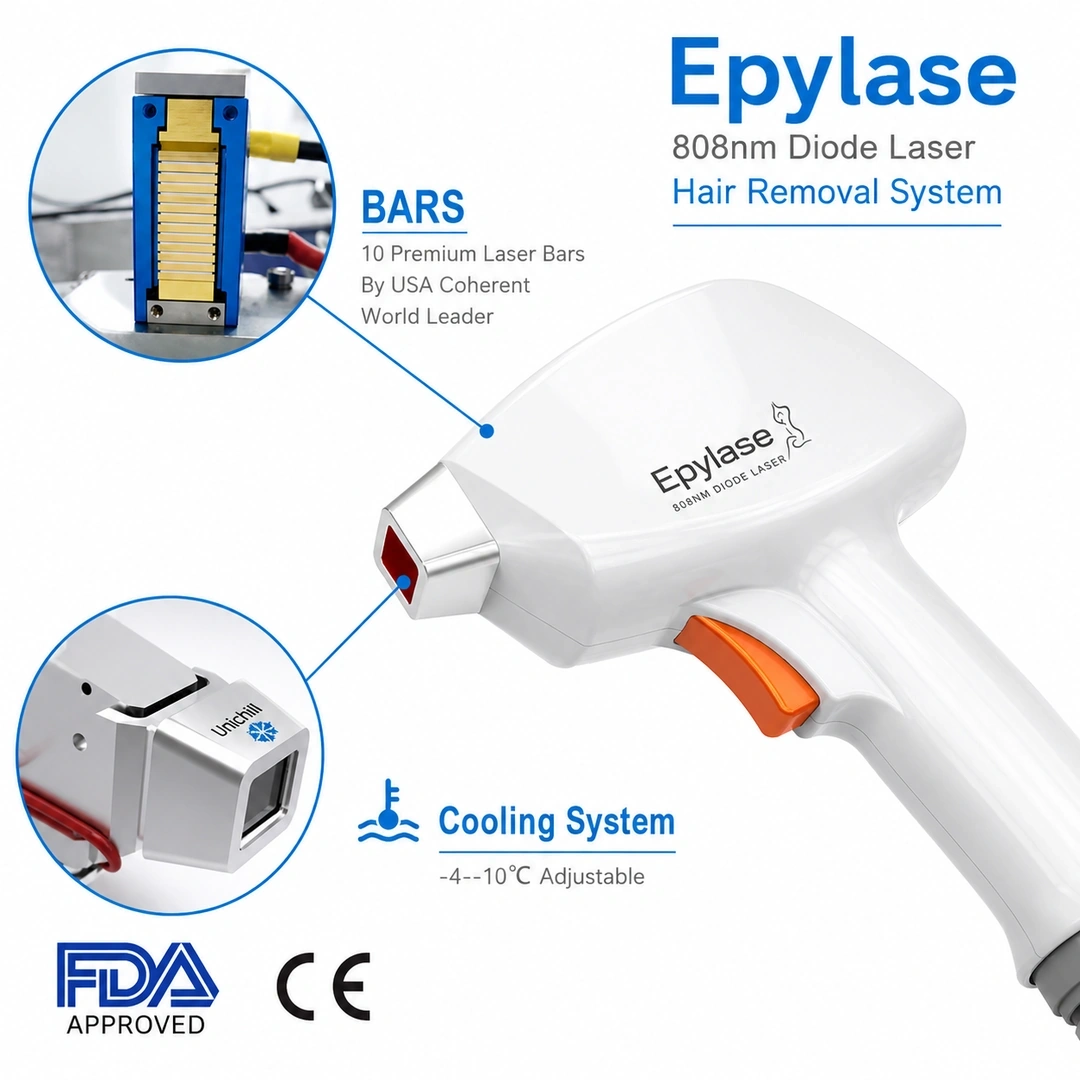

Ergonomic Treatment Handpiece
A compact handpiece design supports controlled movement and close contact with the treatment surface.

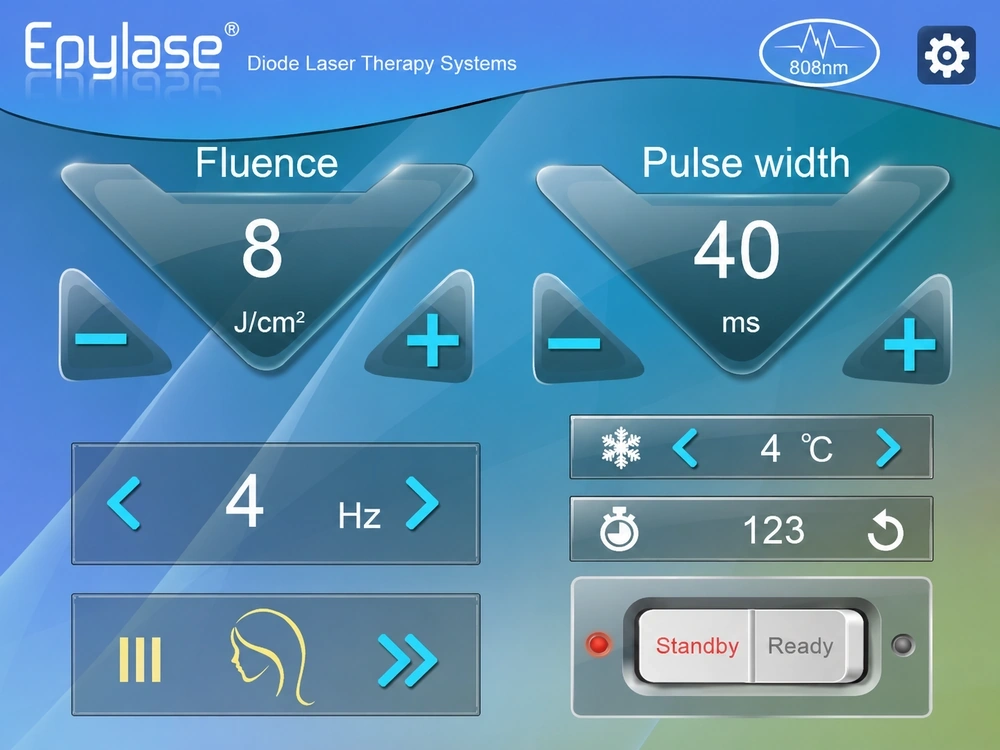

10.4-Inch Touch Interface
Multi-language operation, treatment presets and system checks support efficient daily workflow.

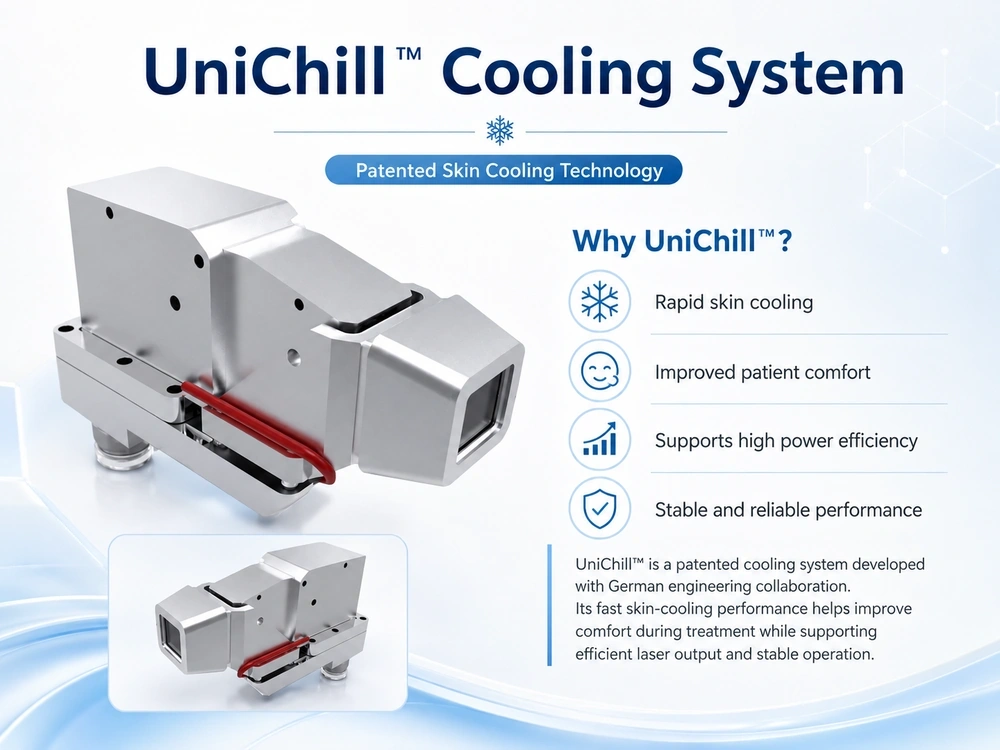

Multi-Layer Cooling System
Sapphire contact cooling, thermoelectric cooling and water circulation support temperature stability.
Product Advantages
Built for Safety Checks, Stability and Treatment Efficiency
Core design advantages for professional aesthetic clinics, laser centres and medical-aesthetic practices.
808nm Target Wavelength
A widely used diode-laser wavelength for professional hair-reduction protocols.
Adjustable 5-400 ms Pulse Width
Broad pulse control supports treatment planning for different hair diameters and skin conditions.
Up to 10 Hz Frequency
High-frequency capability can support efficient treatment of larger body areas.
Continuous Contact Cooling
The sapphire tip helps manage epidermal temperature and improve patient comfort.
Integrated Safety Checks
System monitoring and pre-operation checks help support controlled professional use.
No Routine Treatment Consumables
A reusable treatment handpiece can help reduce ongoing consumable costs.
FDA Registered Configuration
Model-specific FDA registration or listing documentation can be supplied for verification before purchase.
Light sourceDiode laser
Wavelength808 nm
Energy densityMaximum 120 J/cm²
Pulse width5-400 ms
FrequencyUp to 10 Hz
Spot size14 x 12 mm
Rated power1300 VA
Cooling systemSapphire contact cooling + thermoelectric cooling + water circulation
Cooling rangeApproximately -4°C to 10°C
Input voltage230 VAC, 50-60 Hz
Machine dimensions470 x 470 x 1050 mm
Net weightApproximately 40 kg
User interface10.4-inch high-sensitivity touchscreen, multi-language support
Operation modesHand trigger and foot-pedal operation
Regulatory documentationFDA registered configuration; model-specific documents available upon request
Clinical Cases
Before & After Treatment Examples
Replace each placeholder with authorised, standardised clinical photography. Keep lighting, camera angle and treatment interval consistent whenever possible.
BeforeAfter
Underarm Hair Reduction
Clinical photography should include the treatment interval and number of sessions.
BeforeAfter
Bikini Line Hair Reduction
Use only images with documented consent for commercial or educational publication.
BeforeAfter
Leg Hair Reduction
Results vary according to hair cycle, hair characteristics, skin type and treatment protocol.
Clinical result notice: Images are illustrative placeholders. Individual outcomes vary. Do not promise permanent removal or a fixed number of sessions. Treatment must be performed by trained professionals in accordance with local regulations, contraindications and the manufacturer’s operating instructions.
Frequently Asked Questions
Professional Buyer FAQ
The laser energy is absorbed primarily by melanin in the hair shaft and follicular structure. The absorbed energy is converted into heat, while pulse control and contact cooling support a controlled treatment process.
The interface can support protocol selection for Fitzpatrick skin types I-VI. A trained operator must evaluate skin type, tanning status, hair colour, hair diameter, medical history and contraindications before treatment.
The sapphire treatment tip maintains contact with the skin and helps manage epidermal temperature, supporting treatment comfort and controlled energy delivery.
Multiple sessions are generally required because hair grows in cycles. The exact number and interval depend on the treatment area, hair density, hair colour, skin type, hormonal factors and the protocol selected by the practitioner.
The corresponding configuration is supplied with FDA registration or listing documentation. FDA generally uses terms such as registered, listed, cleared or approved rather than “certified.” Request the exact model-specific documents before ordering and verify that the model number matches the machine and invoice.
Confirm the final wavelength configuration, handpiece power, voltage, plug type, language, accessories, certification documents, training, warranty, shipping method and after-sales support before issuing the final invoice.
Request the Latest Configuration and Factory Quotation
Contact Emmalaser for the current handpiece configuration, available wavelengths, model-specific FDA registration documents, training plan, warranty and door-to-door shipping options.
Professional-use equipment. Product configuration and technical data may vary by order. FDA registration or listing status is model-specific and does not replace local market authorization. Verify the final model, documentation, specifications and local regulatory requirements before purchase or clinical use.
